600S ALL TERRAIN

  • Max working height: 20.5m
  • Platform capacity: 272kg
  • Stowed height: 2.61m
  • Weight: 13,027kg

Description

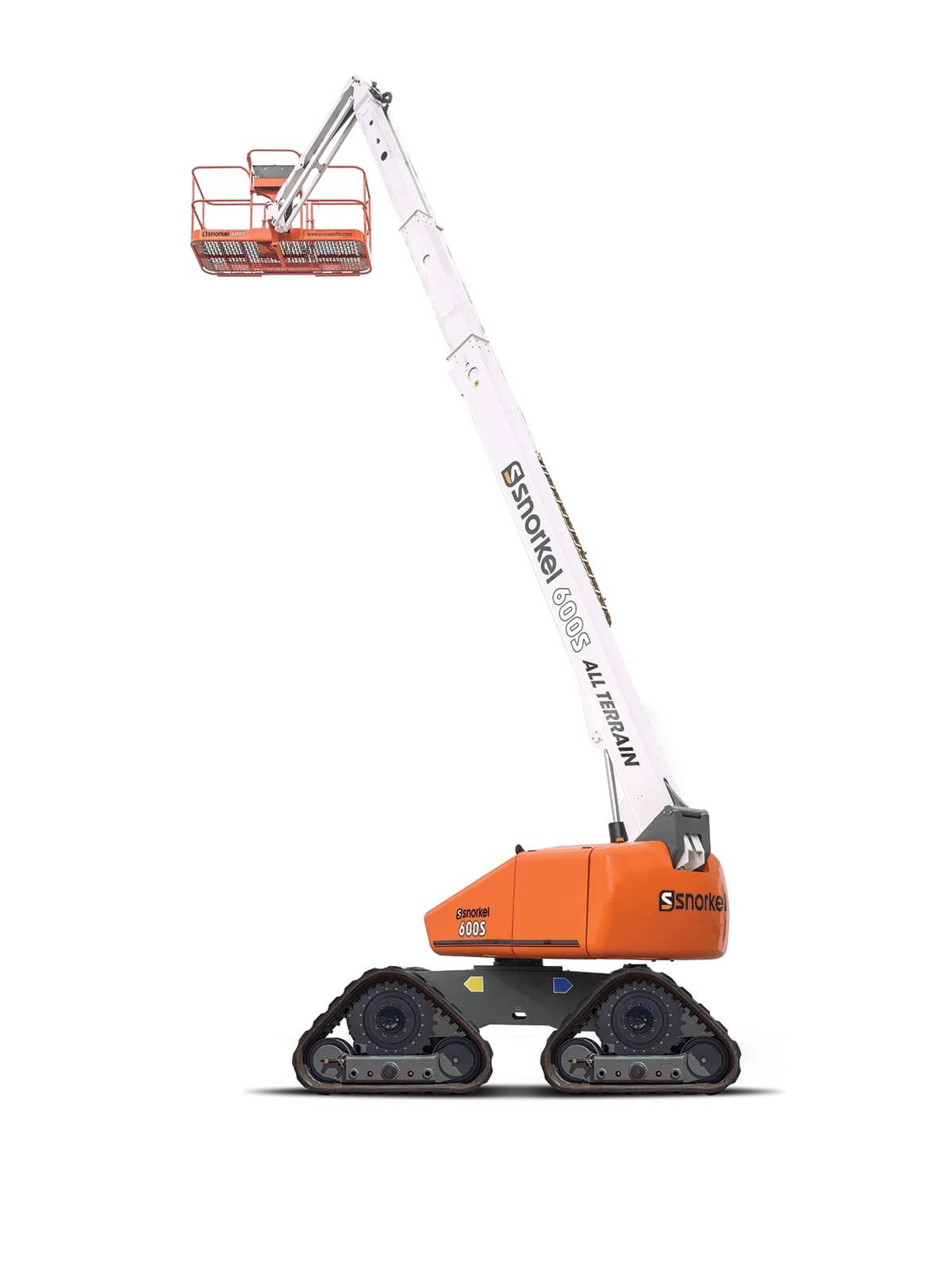

The Snorkel 600S All Terrain telescopic boom lift is fitted with four independent rubber tracks. Easily tackling soft and sensitive environments, this boom lift offers superb maneuverability without sinking or disturbing the ground. Developed with a high torque hydraulic pump, it also has excellent gradeability and can climb gradients up to 45%.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • 1.67m 135 jib (660SJ)
  • Oscillating axle (203mm of oscillation)
  • Hydraulic platform rotation
  • 4-track drive
  • All proportional controls
  • Swing-out engine tray
  • Power line to platform
  • Tilt alarm & cut-out
  • DC emergency operation
  • Hydraulic oil cooler
  • Tri-entry platform
  • Flashing amber light
  • Hour meter & onboard diagnostic display
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

20.5m

Max Platform Height

18.5m

Max Working Outreach

16.0m

Platform Size

2.44m x 0.91m

Transport Width

2.24m

Overall Width

2.46m

Transport Length

9.2m

Overall Length

9.2m

Transport Height

2.61m

Stowed Height

2.61m

Ground Clearance

444mm

Platform Capacity (Unrestricted)

272kg

Platform Capacity (Restricted)

454kg

Max Drive Height

18.5m

Max Wind Speed

12.5m/s

Max Drive Speed (Stowed)

5.6 km/h

Max Drive Speed (Elevated)

0.96 km/h

Jib Length

n/a

Jib Arc

n/a

Platform Rotation

150°

Turret Rotation

360°

Raise/Lower Time

50/50 sec

Tailswing

1.2m

Gradeability

45%

Inside Turning Radius

5.94m

Outside Turning Radius

8.38m

Tyres

Independent rubber tracks

Controls

Proportional drive, raise, slew, extend, jib & platform rotate

Drive System

4 wheel drive

Power Source

Deutz 2.9L 55kW/74hp – Stage V

Auxillary Power Unit

12V DC

Weight

13,027kg

Options

  • Special paint colours
  • Airline to platform
  • Non-marking tyres
  • AC generator 110V/220V 2.5kW
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Glazier package
  • 10kW generator package
  • 10kW generator/welder package
  • Environmental hydraulic oil
  • Tool tray
  • Pipe rack
  • Snorkel OnSite™ telematics

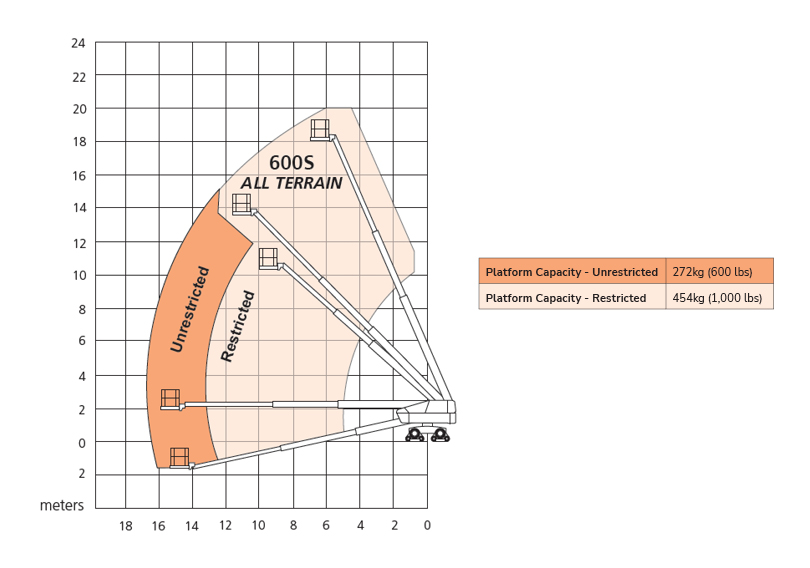

Working Envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Ibérica. For more details, visit our warranty page.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
