660SJ

Max working height: 22.0m
Platform capacity: 272kg
Stowed height: 2.51m
Weight: 12,982kg

Description

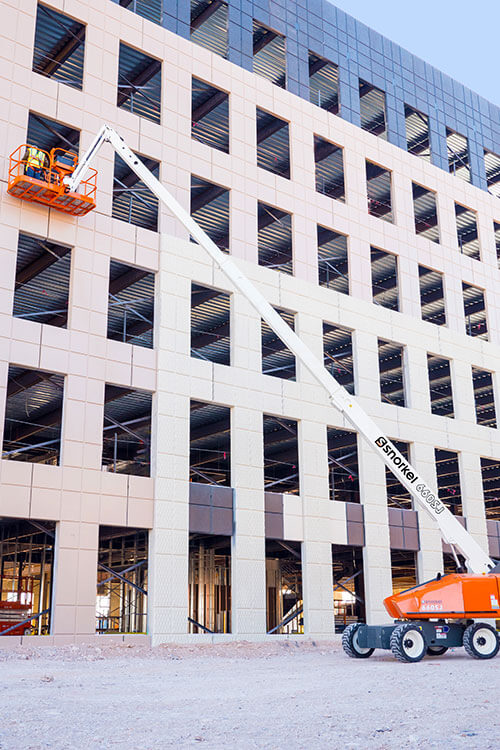

The Snorkel 660SJ mid-sized telescopic boom lift is rugged and robust for all terrains. Built to last, a constant 4-wheel drive delivers outstanding rough terrain performance. For full reach on any jobsite, operators benefit from all-proportional hydraulics and a jib for added flexibility.

Standard Features

Snorkel Guard™ secondary guarding system
1.67m 135 jib (660SJ)
Oscillating axle (203mm of oscillation)
Hydraulic platform rotation
4-wheel drive
All proportional controls
Swing-out engine tray
Power line to platform
Tilt alarm & cut-out
DC emergency operation
Hydraulic oil cooler
Tri-entry platform
Flashing amber light
Hour meter & on-board diagnostic display
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max Working Height	22.0m
Max Platform Height	20.0m
Max Working Outreach	17.7m
Platform Size	2.44m x 0.91m
Transport Width	2.24m
Overall Width	2.46m
Transport Length	8.3m
Overall Length	10.1m
Transport Height	2.9m
Stowed Height	2.51m
Ground Clearance	340mm
Platform Capacity (Unrestricted)	272kg
Platform Capacity (Restricted)	454kg
Max Drive Height	20.0m
Max Wind Speed	12.5m/s
Max Drive Speed (Stowed)	5.6 km/h
Max Drive Speed (Elevated)	0.96 km/h
Jib Length	1.67m
Jib Arc	135° (+70°/-65°)
Platform Rotation	150°
Turret Rotation	360°
Raise/Lower Time	50/50 sec
Tailswing	1.2m
Gradeability	45%
Inside Turning Radius	3.06m
Outside Turning Radius	5.21m
Tyres	355/55 D625 foam filled lug
Controls	Proportional drive, raise, slew, extend, jib & platform rotate
Drive System	4 wheel drive
Power Source	Cummins 47.8kW (65hp) turbo diesel, Deutz T4F, Stage V
Auxillary Power Unit	12V DC
Weight	12,982kg

Options

Special paint colours
Airline to platform
Non-marking tyres
Dual fuel
AC generator 110V/220V 2.5kW
Aircraft package
Deluxe aircraft package
Cold weather package
Extreme cold weather package
Extreme environment package
Light package
Tow kit
Glazier package
10kW generator package
10kW generator/welder package
Environmental hydraulic oil
Tool tray
Pipe rack
Snorkel OnSite™ telematics

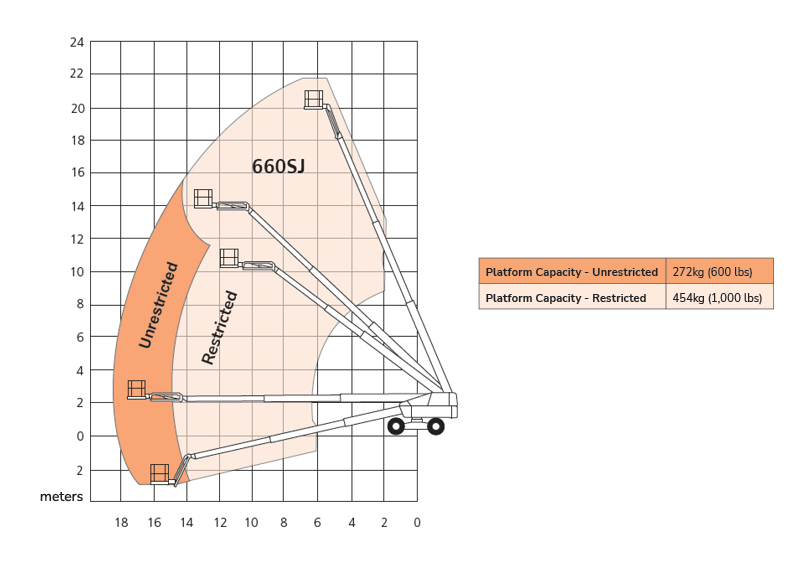

Working Envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Ibérica. For more details, visit our warranty page.
