A46JRT

  • Max working height: 16.3m
  • Platform capacity: 227kg
  • Stowed height: 2.16m
  • Weight: 7,540 kg

Description

The class-leading Snorkel A46JRT articulating boom lift delivers precise reach and powerful rough terrain performance. Its up-and-over capabilities provide exceptional maneuverability with an articulated jib as standard for extended reach. A tight turning radius and zero tailswing makes the A46JRT a flexible and versatile machine for hard-to-reach places.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Tri-entry platform
  • Drive motion alarm
  • Multi-function proportional controls
  • Oscillating front axle (A46JRT)
  • Power line to platform
  • Zero tailswing
  • Hour meter & on-board diagnostics display
  • Foam filled tyres (A46JRT)
  • Non-marking tyres (A46JE)
  • Battery charge indicator (A46JE)
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Working Height

16.3m

Max Platform Height

14.3m

Max Working Outreach

7.35m

Clearance Height at Max Outreach

7.67m

Platform Size

1.0m x 1.83m

Chassis Width

2.1m

Overall Length

5.7m

Stowed Height

2.16m

Ground Clearance

330mm

Platform Capacity (SWL)

227kg

Max Drive Height

14.3m

Max Wind Speed

12.5m/s

Max Drive Speed (Stowed)

6.4m/h

Max Drive Speed (Elevated)

1.3km/h

Jib Length

1.5m

Jib Arc

140°

Platform Rotation

160°

Turret Rotation

360º non-continuous

Tailswing

0m

Raise/Lower Time

101/98 sec

Gradeability

45%

Inside Turning Radius

0.8m

Outside Turning Radius

3.17m

Tyres

High grip, foam-filled 355/55D625NHS 17.5

Controls

proportional

Drive System

4 wheel drive

Power Source

Kubota V1505 24.9hp diesel

Battery Charger

n/a

Weight

7,540 kg

Options

  • Special paint colours
  • AC generator 110V/240V 2kW (A46JRT)
  • Airline to platform (A46JRT)
  • Non-marking tyres (A46JRT)
  • Environmental hydraulic oil
  • 1.52m aluminium platform with swing gate
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package (A46JRT)
  • Extreme environment package
  • Light package
  • Utility package (A46JRT)
  • Tool tray (A46JRT)
  • Pipe rack
  • Snorkel OnSite™ telematics

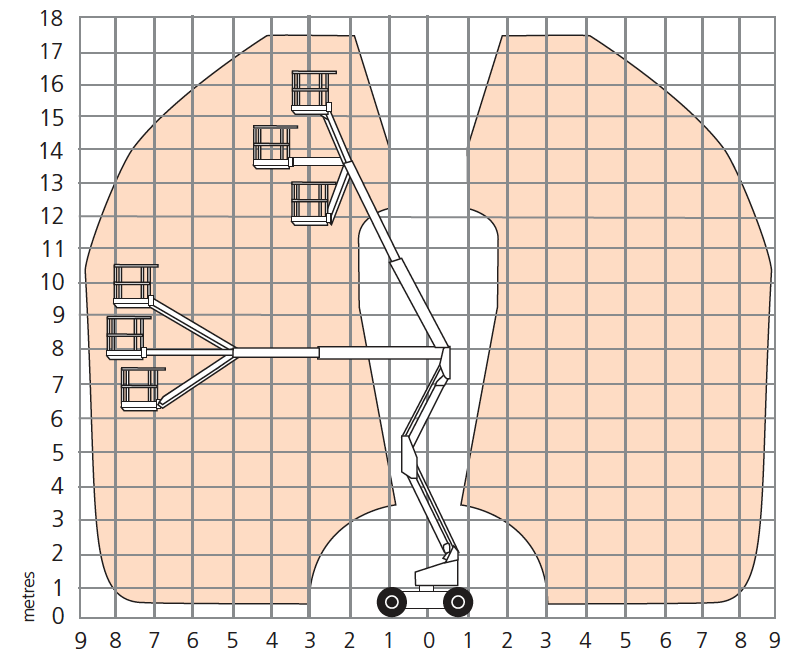

Working Envelope

A46JE/A46JRT Working Envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Ibérica. For more details, visit our warranty page.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
