• Max working height: 10.5 m
  • Lifting Capacity: 130 kg
  • Max outreach: 6.5 m
  • Weight: 950 kg

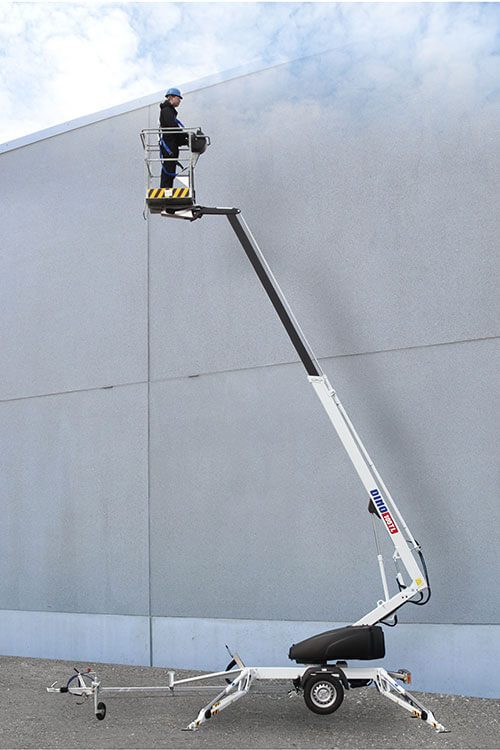

The DINO 105TL trailer-mounted telescopic MEWP is designed to be ultra light. It is simple to use and easy to maintain for safe and reliable operation. This MEWP features a one-person steel basket with standard outrigger.

Standard Features

  • Ultra-light, total weight only 950 kg
  • Simple, easy to use
  • Easy to maintain
  • 1-person steel basket, capacity 130 kg
  • Reliable and safe

Additional information

Max Working Height

10.50 m

Max Platform Height

8.50 m

Max Working Outreach

6.50 m

Support Width

3.25 / 3.50 m

Lifting Capacity

130 kg

Basket Size

0.75 x 0.80 m

Boom Rotation

+/- 355°

Basket Rotation


Boom Control


Transport Length

5.43 m

Transport Width

1.50 m

Transport Height

1.99 m


950 kg

Drive System


AC socket in the basket x 2


Electro Motor



  • Driving system; easy to move at work site
  • Outrigger support indicator
  • Extra outrigger pads 300 x 300 x 30 mm + bracket
  • Lockable tool / harness box
  • Spare wheel
  • Special color

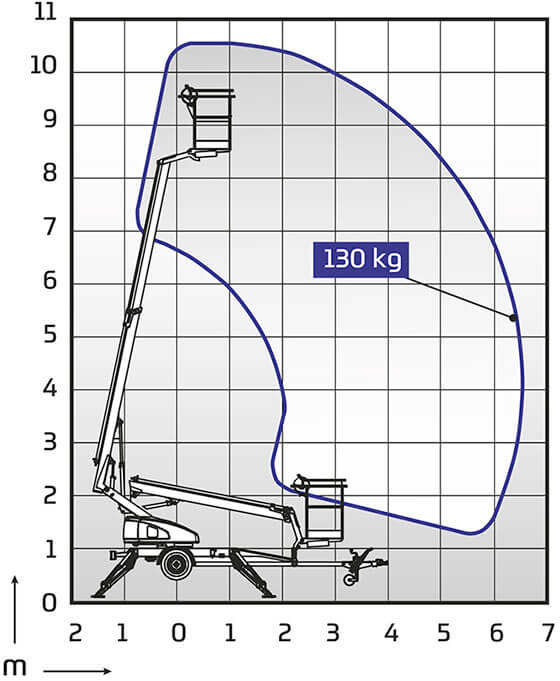

Outreach Diagram

DINO 105TL Outreach Diagram


All Dinolift machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Dinolift products, all Dinolift machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Spain. For more details, visit our warranty page.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
