• Max working height: 12 m
  • Lifting Capacity: 120 kg
  • Max outreach: 7.9 m
  • Weight: 1285 kg

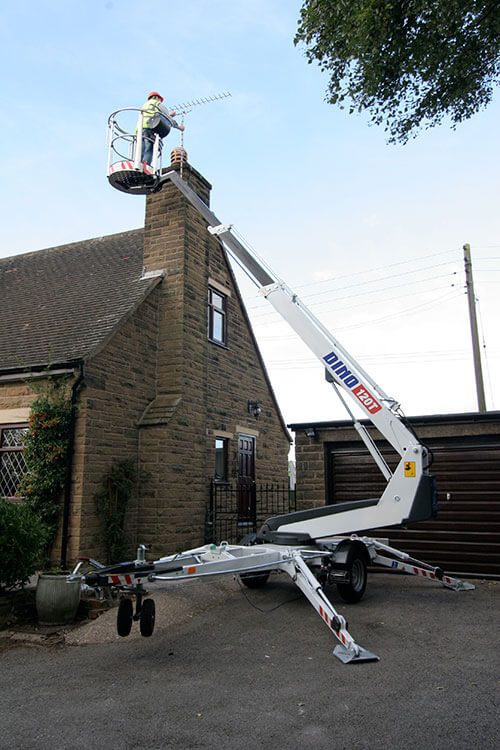

The DINO 120T trailer-mounted telescopic MEWP offers versatile performance. Lightweight yet robust, it is both cost-effective and easy to work with on any jobsite. This towable MEWP is designed for ease of transport to quickly move between jobs. With simple controls and a continuous rotation boom, the DINO 120T provides dynamic performance.

Standard Features

  • Lightweight, robust, cost-effective
  • Driving system; easy to move at work site
  • Large outrigger pads 280 x 360 mm
  • Continuous rotation of the boom; easy and functional
  • Stable to tow, easy to transport
  • Simple to use, clear and informative controls

Additional information

Max Working Height

12.00 m

Max Platform Height

10.00 m

Max Working Outreach

7.90 m

Support Width

3.15 / 3.55 m

Lifting Capacity

120 kg

Basket Size

0.75 x 0.80 m

Boom Rotation


Boom Control


Transport Length

5.52 m

Transport Width

1.72 m

Transport Height

1.96 m


1285 kg

Drive System


AC socket in the basket x 2


Electro Motor


Petrol Power Pack





  • Petrol power pack
  • Cable steering for driving
  • Outrigger support indicator
  • LED working lights
  • Extra outrigger pads 500 x 500 x 35 mm + bracket
  • Lockable tool / harness box
  • Spare wheel

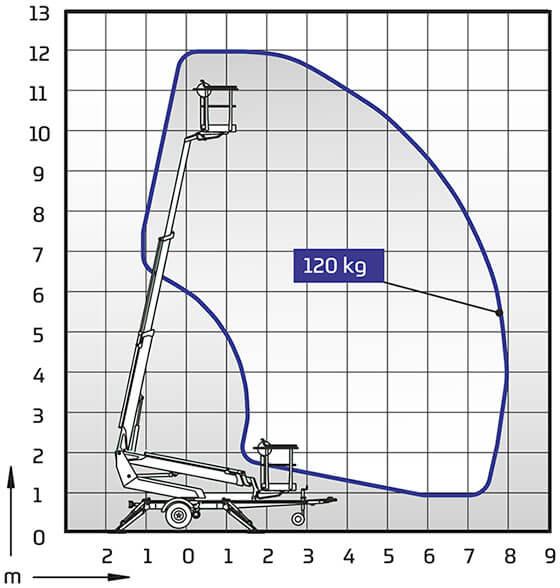

Outreach Diagram

DINO 120T Outreach Diagram


All Dinolift machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Dinolift products, all Dinolift machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Spain. For more details, visit our warranty page.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
