• Max working height: 12 m
  • Lifting Capacity: 130 kg
  • Max outreach: 7.90 m
  • Weight: 1390 kg

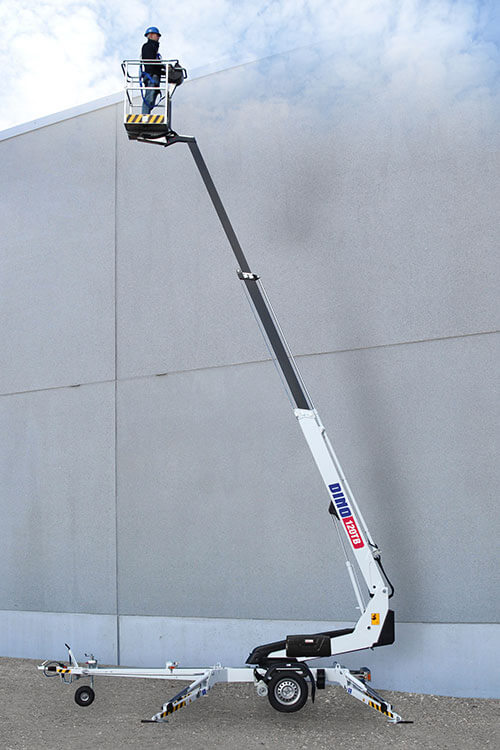

The DINO 120TB trailer-mounted telescopic MEWP is well-suited for short-term jobs. Easily towable with a fast setup, it is perfect for quickly moving between jobsites. With a powerful charger, this MEWP can be operated while charging to maximize performance. This lightweight boom also includes simple controls and continuous rotation.

Standard Features

  • Lightweight, robust, cost-effective
  • Driving system; easy to move at work site
  • Large outrigger pads 280 x 360 mm
  • Continuous rotation of the boom; easy and functional
  • Stable to tow, easy to transport
  • Easy and fast setup; perfect solution for short time jobs
  • Simple to use, clear and informative controls
  • Powerful charger; machine can be operated directly when charging the batteries

Additional information

Max Working Height

12.00 m

Max Platform Height

10.00 m

Max Working Outreach

7.90 m

Support Width

3.15 / 3.55 m

Lifting Capacity

130 kg

Basket Size

0.75 x 0.80 m

Boom Rotation


Boom Control


Transport Length

5.52 m

Transport Width

1.72 m

Transport Height

1.96 m


1390 kg

Drive System


AC socket in the basket x 2


DC Motor





  • 2kW Honda generator + bracket for charging batteries where 230VAC is not available
  • Cable steering for driving
  • Outrigger support indicator
  • Extra outrigger pads 500 x 500 x 35 mm + bracket
  • Lockable tool / harness box
  • Spare wheel

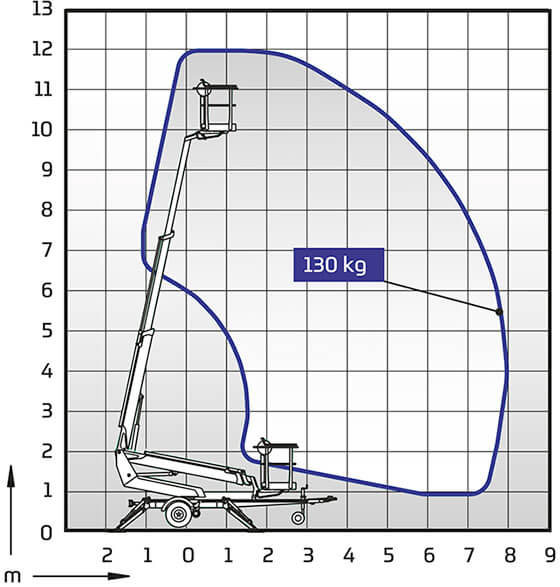

Outreach Diagram

DINO 120 TB Outreach Diagram


All Dinolift machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Dinolift products, all Dinolift machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Spain. For more details, visit our warranty page.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
