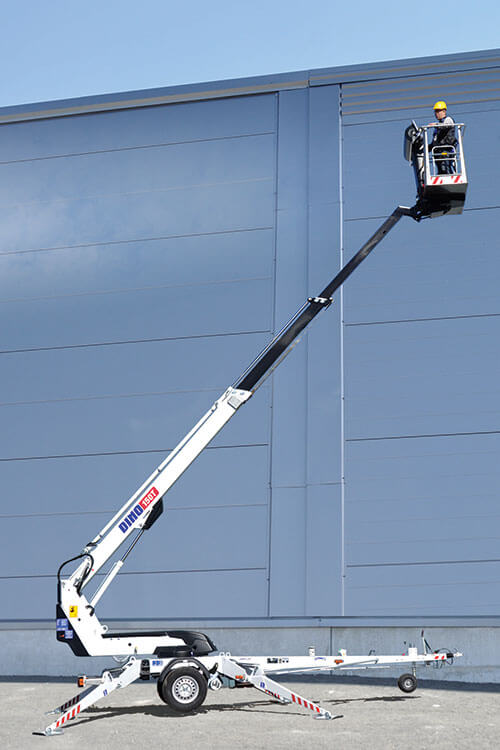

DINO 150T II

  • Max working height: 15 m
  • Lifting Capacity: 215 kg
  • Max outreach: 10 m
  • Weight: 1675 kg

Description

With a telescopic boom reaching as high as 15m in working height, the towable DINO 150T II makes it easy to work at height. Its lightweight design is easy to transport. A spacious basket with 90° continuous rotation features a maximum lifting capacity of 215kg. Proportional controls give operators smooth performance on the job.

Standard Features

  • Lightweight, robust, cost-effective
  • Driving system; easy to move at work site
  • Spacious, easy-entry basket; capacity 215 kg
  • Large outrigger pads 280 x 360 mm
  • Continuous rotation of the boom; easy and functional
  • Basket rotation 90°
  • Proportional controls
  • Stable to tow, easy to transport
  • Simple to use, clear and informative controls

Additional information

Max Working Height

15.00 m

Max Platform Height

13.00 m

Max Working Outreach

10.00 m

Support Width

3.8 / 4.2 m

Lifting Capacity

215 kg

Basket Size

0.7 x 1.3 m

Boom Rotation

Continuous

Basket Rotation

90°

Boom Control

proport.

Transport Length

6.66 m

Transport Width

1.79 m

Transport Height

2.12 m

Weight

1675 kg

Drive System

Std

AC socket in the basket x 2

Std

Electric motor 110/230VAC

Std

Petrol Engine

Option

Gradeability

25%

Options

  • Petrol engine
  • Cable steering for driving
  • Outrigger support indicator
  • LED working lights
  • DINO SafeGuard secondary guarding
  • Extra outrigger pads 500 x 500 x 35 mm + bracket
  • Lockable tool / harness box
  • Rack for tools and accessories
  • Spare wheel

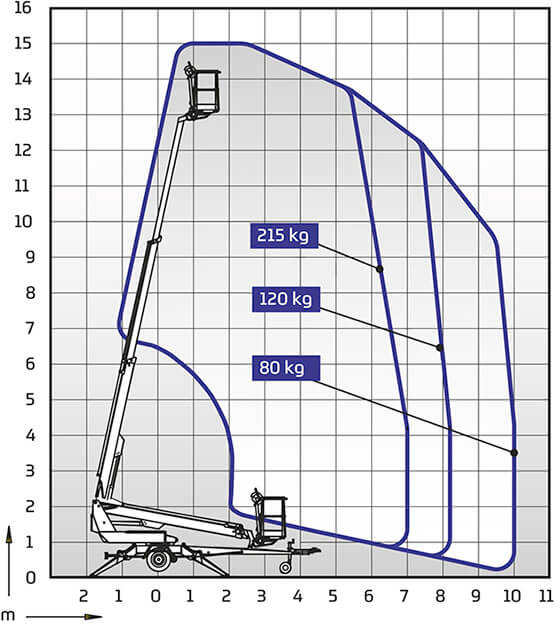

Outreach Diagram

DINO 150T II Outreach Diagram

Warranty

All Dinolift machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Dinolift products, all Dinolift machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Spain. For more details, visit our warranty page.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
