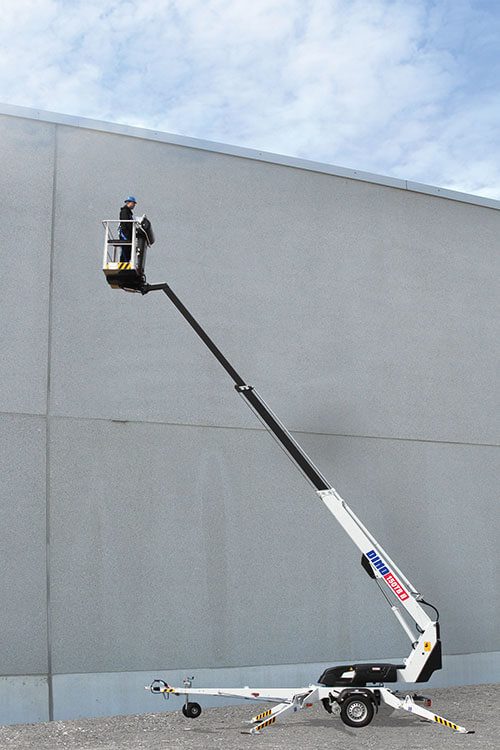

DINO 150TB II

Max working height: 15 m
Lifting Capacity: 215 kg
Max outreach: 10 m
Weight: 1835 kg

Description

For dependable performance, the DINO 150TB II trailer-mounted telescopic MEWP delivers. A robust driving system can easily move between jobsites. Outriggers as standard make this machine ideal for work on uneven surfaces. For smooth performance, this MEWP is equipped with proportional controls.

Standard Features

Lightweight, robust, cost-effective
Driving system; easy to move at work site
Spacious, easy-entry basket; capacity 215 kg
Large outrigger pads 280 x 360 mm
Continuous rotation of the boom; easy and functional
Basket rotation 90°
Proportional controls
Stable to tow, easy to transport
Easy and fast setup; perfect solution for short time jobs
Simple to use, clear and informative controls
Powerful charger; machine can be operated directly when charging the batteries.
High-capacity batteries, 4 x 6VDC, 235Ah. Work one day with overnight charge.

Additional information

Max Working Height	15.00 m
Max Platform Height	13.00 m
Max Working Outreach	10.00 m
Support Width	3.8 / 4.2 m
Lifting Capacity	215 kg
Basket Size	0.7 x 1.3 m
Boom Rotation	Continuous
Basket Rotation	90°
Boom Control	proport.
Transport Length	6.66 m
Transport Width	1.79 m
Transport Height	2.12 m
Weight	1835 kg
Drive System	Std
AC socket in the basket x 2	Std
Batteries 235 Ah	Std
DC Motor	Std
Gradeability	25%

Options

2kW Honda generator + bracket for charging batteries where 230VAC is not available
Cable steering for driving
Outrigger support indicator
LED working lights
DINO SafeGuard secondary guarding
Extra outrigger pads 500 x 500 x 35 mm + bracket
Lockable tool / harness box
Rack for tools and accessories
Spare wheel

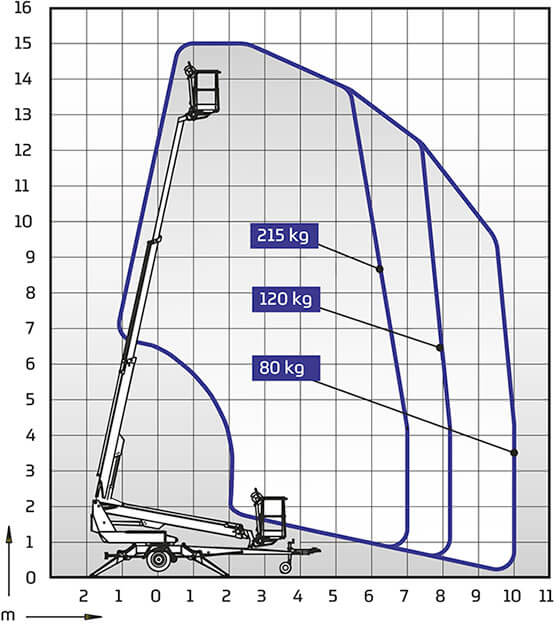

Outreach Diagram

DINO 150TB II Outreach Diagram

Warranty

All Dinolift machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Dinolift products, all Dinolift machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Spain. For more details, visit our warranty page.
