• Max working height: 16 m
  • Lifting Capacity: 215 kg
  • Max outreach: 9.10 m
  • Weight: 1990 kg

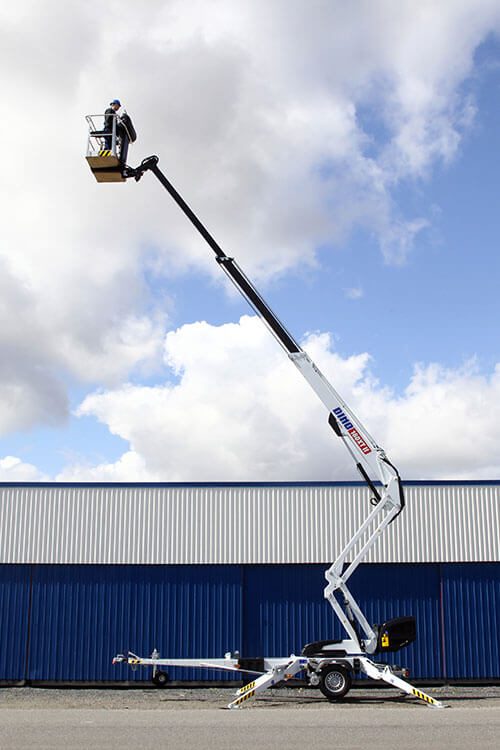

Designed to be lightweight and compact, the DINO 160XT II trailer-mounted articulated MEWP has a transport length of only 6.15m. It features excellent outreach with a full basket load and 180° continuous rotation. The DINO 160XT II is both easy to drive and stable to tow, making it simple to operate.

Standard Features

  • Maximum outreach with full basket load
  • Compact size, transport length only 6.15 m
  • Total weight less than 2000 kg including engine
  • Driving system; easy to move at work site
  • Hydraulic basket rotation 180°
  • Spacious, easy-entry basket; capacity 215 kg
  • Large outrigger pads 280 x 360 mm
  • Continuous rotation of the boom; easy and functional
  • Stable to tow
  • Simple to use, clear and informative controls

Additional information

Max Working Height

16.00 m

Max Platform Height

14.00 m

Max Working Outreach

9.10 m

Support Width

3.8 / 4.2 m

Lifting Capacity

215 kg

Basket Size

0.7 x 1.3 m

Boom Rotation


Basket Rotation


Boom Control


Transport Length

6.15 m

Transport Width

1.80 m

Transport Height

2.30 m


1990 kg

Drive System


AC socket in the basket x 2


Electro Motor


Petrol Power Pack


Diesel Power Pack





  • Petrol or diesel power pack
  • Cable steering for driving
  • Two joystick controls
  • Outrigger support indicator
  • Automatic levelling
  • LED working lights
  • Extra outrigger pads 500 x 500 x 35 mm + bracket
  • Lockable tool / harness box
  • Rack for tools and accessories
  • Spare wheel
  • DINO SafeGuard secondary guarding

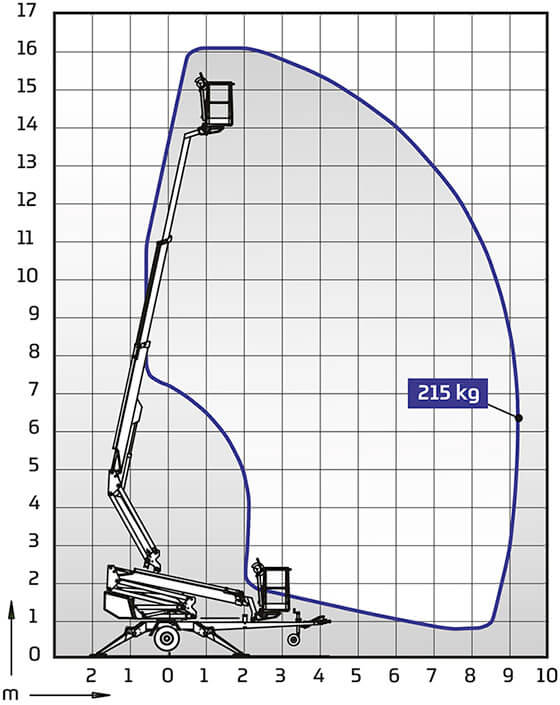

Outreach Diagram

DINO 160XT II Outreach Diagram



All Dinolift machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Dinolift products, all Dinolift machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Spain. For more details, visit our warranty page.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
