DINO 180XT II

  • Max working height: 18 m
  • Lifting Capacity: 215 kg
  • Max outreach: 11.20 m
  • Weight: 2315 kg

Description

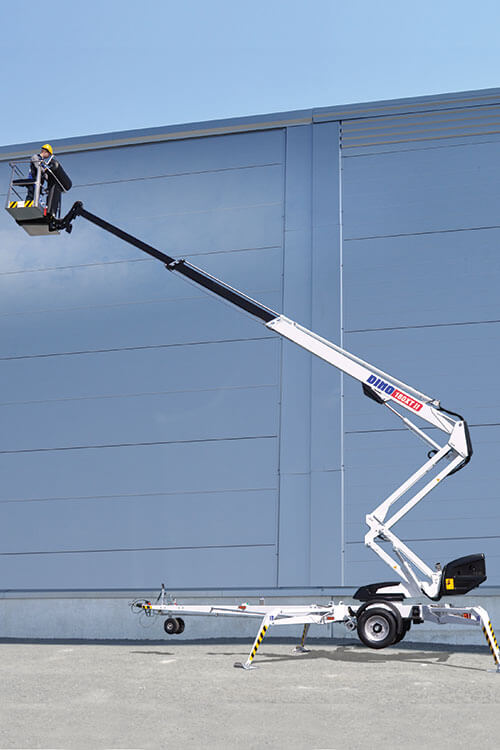

The DINO 180XT II trailer-mounted articulated MEWP has excellent outreach and leveling capabilities. Equipped with outriggers as standard, this machine can work on slopes and uneven terrain. With an impressive outreach, the DINO 180XT II also has a spacious hydraulic basket with 180° continuous rotation for working at height.

Standard Features

  • Spider outriggers; great levelling capability in slopy terrain
  • Large outreach 11.2 m / 120 kg, 9.1 m / 215 kg
  • Driving system; easy to move at work site
  • Hydraulic basket rotation 180°
  • Spacious, easy-entry basket; capacity 215 kg
  • Large outrigger pads 280 x 360 mm
  • Continuous rotation of the boom; easy and functional
  • Stable to tow
  • Simple to use, clear and informative controls

Additional information

Max Working Height

18.00 m

Max Platform Height

16.00 m

Max Working Outreach

11.20 m

Support Width

3.9 / 4.3 m

Lifting Capacity

215 kg

Basket Size

0.7 x 1.3 m

Boom Rotation

Continuous

Basket Rotation

180°

Boom Control

proport.

Transport Length

6.66 m

Transport Width

1.95 m

Transport Height

2.30 m

Weight

2315 kg

Drive System

Std

AC socket in the basket x 2

Std

Electro Motor

Std

Petrol Power Pack

Option

Diesel Power Pack

Option

Gradeability

25%

Options

  • Petrol or diesel power pack
  • Cable steering for driving
  • Two joystick controls
  • Outrigger support indicator
  • Automatic levelling
  • LED working lights
  • Extra outrigger pads 500 x 500 x 35 mm + bracket
  • Lockable tool / harness box
  • Rack for tools and accessories
  • Spare wheel
  • DINO SafeGuard secondary guarding

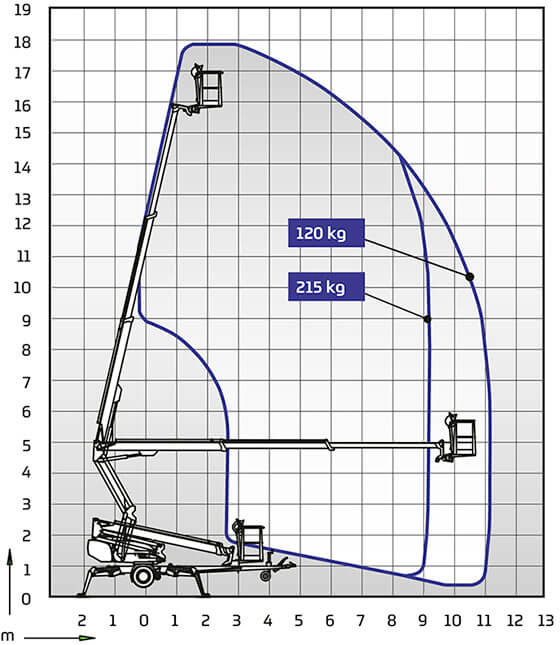

Outreach Diagram

DINO 180XT II Outreach Diagram

Video

Warranty

All Dinolift machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Dinolift products, all Dinolift machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Spain. For more details, visit our warranty page.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
