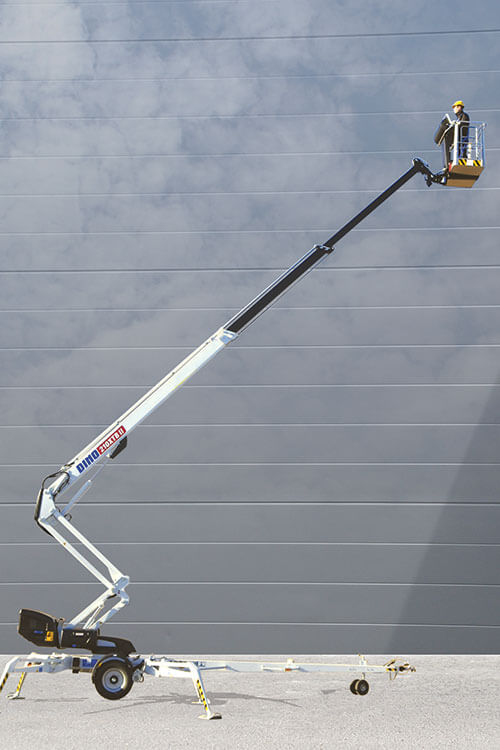

DINO 210XTB II

Max working height: 21 m
Lifting Capacity: 215 kg
Max outreach: 11.70 m
Weight: 2610 kg

Description

The DINO 210XTB II trailer-mounted articulated MEWP has great leveling capabilities. To work on slopes or uneven terrain, it is equipped with outriggers as standard. A spacious basket with easy entry features 180° continuous rotation for ease of operation. This MEWP also has high-capacity batteries and a powerful charger to last all day on the job.

Standard Features

Spider outriggers; great levelling capability in slopy terrain
Driving system; easy to move at work site
Cable steering for driving
Hydraulic basket rotation 180°
Spacious, easy-entry basket; capacity 215 kg
Large outrigger pads 280 x 360 mm
Continuous rotation of the boom; easy and functional
Stable to tow
Easy and fast setup; perfect solution for short time jobs
Simple to use, clear and informative controls
Powerful charger; machine can be operated directly when charging the batteries. (XTB II series)
High-capacity batteries, 4 x 6VDC, 235Ah. Work one day with overnight charge.

Additional information

Max Working Height	21.00 m
Max Platform Height	19.00 m
Max Working Outreach	11.70 m
Support Width	3.9 / 4.3 m
Lifting Capacity	215 kg
Basket Size	0.7 x 1.3 m
Boom Rotation	Continuous
Basket Rotation	180°
Boom Control	proport.
Transport Length	7.92 m
Transport Width	1.95 m
Transport Height	2.33 m
Weight	2610 kg
Drive System	Std
AC socket in the basket x 2	Std
Batteries 235 Ah	Std
DC Motor	Std
Gradeability	25%

Options

Two joystick controls
Outrigger support indicator
Automatic levelling
LED working lights
Extra outrigger pads 500 x 500 x 35 mm + bracket
Lockable tool / harness box
Rack for tools and accessories
Spare wheel
DINO SafeGuard secondary guarding
2kW Honda generator + bracket for charging batteries where 230VAC is not available

Outreach Diagram

DINO 210XTB II Outreach Diagram

Video

Warranty

All Dinolift machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Dinolift products, all Dinolift machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Spain. For more details, visit our warranty page.
