• Max working height: 22 m
  • Lifting Capacity: 230 kg
  • Max outreach: 12 m
  • Weight: 4700 kg

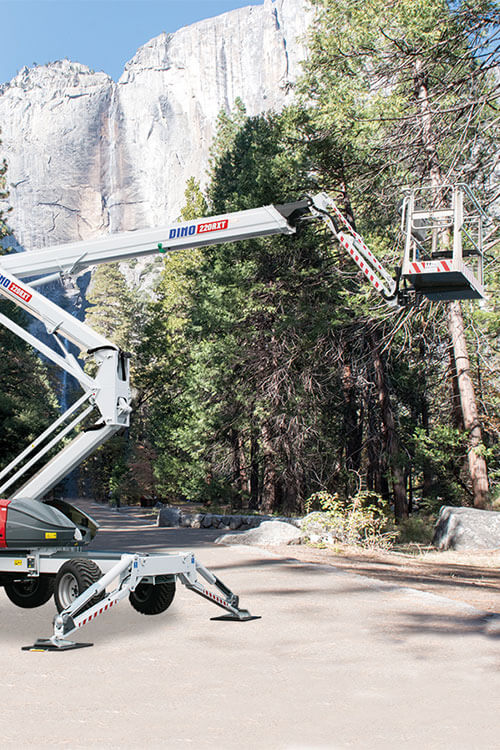

The lightweight DINO 220RXT articulated boom lift is equipped with stabilizing outriggers. Delivering low ground pressure, this lift is designed to work on soft surfaces. Rough terrain capabilities allows the DINO 220RXT to climb gradients up to 40%. Driving up to 10km/h in transport position, this lift also features four steering modes and can operate up to four boom movements simultaneously.

Standard Features

  • Lightweight boom lift with outriggers
  • Cost-efficient in use and easy to transport
  • Low ground pressure, easy to move on soft surfaces
  • Easy-entry basket, fully operational from the basket
  • Great rough terrain access: oscillating front axle
  • Strong engine, excellent gradeability up to 40%
  • 4WD/ 2WS/ 4WS/ Crab steering
  • Fast to drive and setup: 10 km/h drive speed in transport position
  • Automatic levelling up to 8°
  • Up to 4 simultaneous boom movements
  • Improved user experience, easy to operate, easy to maintain
  • Superior boom performance, 8.2 m up-and-over and up to 12 m outreach
  • Fly-jib 1.6m / 140°

Additional information

Max Working Height

22.00 m

Max Platform Height

20.00 m

Max Working Outreach

12.00 m

Support Width

4.6 / 4.2 m

Lifting Capacity

230 kg / 250 kg*

Basket Size

0.7 x 1.3 m / 0.75 x 1.6 m*

Boom Rotation


Basket Rotation


Boom Control

CAN-BUS, proport.


1.6 m / 140°

Transport Length

6.35 m

Transport Width

2.05 m

Transport Height

2.37 m


4700 kg

Approach / Departure Angles


Ground Clearance

0.33 m

Four Wheel Drive


Steering, 2WS / 4WS / Crab


AC socket in the basket x 2


Diesel engine Kubota 18.5 kW


Electric motor 110/230VAC


Automatic Levelling




Drive Speed

10.0 / 3.0 km/h


  • Electric motor for boom movements
  • Hydraulic generator 3.5 kW
  • Different tyre configurations
  • Air compressor
  • Extra outrigger pads and brackets, 600 x 600 x 25 mm
  • XL-basket 0.75 x 1.6 m with 250 kg lifting capacity
  • One person basket 0.70 x 0.80 m
  • DINO SafeGuard secondary guarding
  • LED working lights, 2 x 13 W
  • LED driving lights

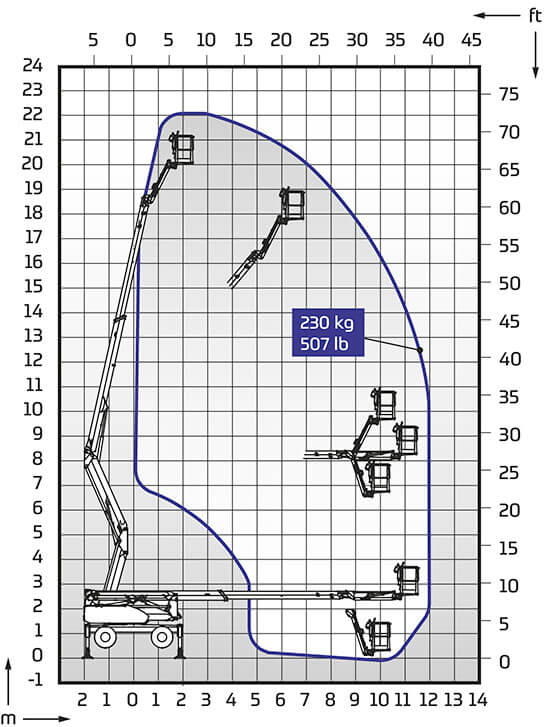

Outreach Diagram



All Dinolift machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Dinolift products, all Dinolift machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Spain. For more details, visit our warranty page.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
