DINO 230VT

Max working height: 23 m
Lifting Capacity: 230 kg
Max outreach: 15.1 m / 11.3 m
Weight: 3460 kg

Description

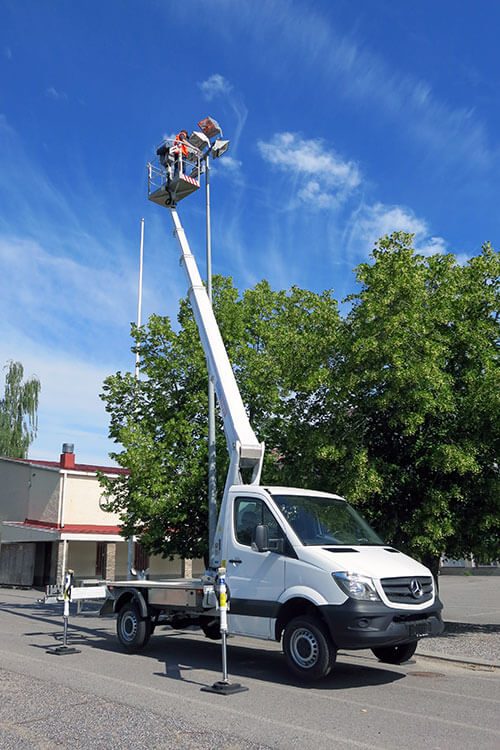

The DINO230VT 3.5t vehicle-mounted lift is easy to drive and has a low total cost of operation. It features three jacking options including narrow, wide and one sided, with automatic leveling capabilities. Smooth transitions within the working envelope improves operator comfort. The hydraulic basket offers easy entry with a 180°rotation and remote start/stop functionality.

Standard Features

Cost-efficient in use and easy to drive with a B-class driver’s license
Three jacking options: narrow, wide and one-sided, automatic levelling
Easy-entry basket with non-slip stairway
Hydraulic basket rotation 180°
Up to 3 simultaneous boom movements
Home and memory functions as standard features
DINO CAN-BUS control system: intuitive controls
Bumper and cabin protection, auto-detect boom position
Smooth transitions within the working envelope: operator comfort
Rental proof: well-protected components
Remote start/ stop from the basket
Automatic variable load dependent engine RPM

Additional information

Max Working Height	28.00 m
Max Platform Height	26.00 m
Max Working Outreach	16.00 m
Support Width	4.6 / 4.2 m
Lifting Capacity	230 kg
Basket Size	0.7 x 1.3 m
Boom Rotation	Continuous
Basket Rotation	180°
Boom Control	CAN-BUS, proport.
Jib	1.6 m / 140°
Transport Length	5.82 m
Transport Width	2.05 m
Transport Height	2.37 m
Weight	4860 kg
Approach / Departure Angles	33.4°
Ground Clearance	0.33 m
Four Wheel Drive	Std
Steering, 2WS / 4WS / Crab	Std
AC socket in the basket x 2	Std
Diesel engine Kubota 18.5 kW	Std
Electric motor 110/230VAC	Option
Automatic Levelling	Std
Gradeability	40%
Drive Speed	10.0 / 3.0 km/h

Options

LED flood working lights in the basket
12 V and USB power outlets in the basket
Outrigger pads and brackets, 400 x 400 mm with a collar, including brackets for transport
LED markers on each outrigger cover
Insulated basket
Tools and harness box in the vehicle frame
Open top frame cargo area

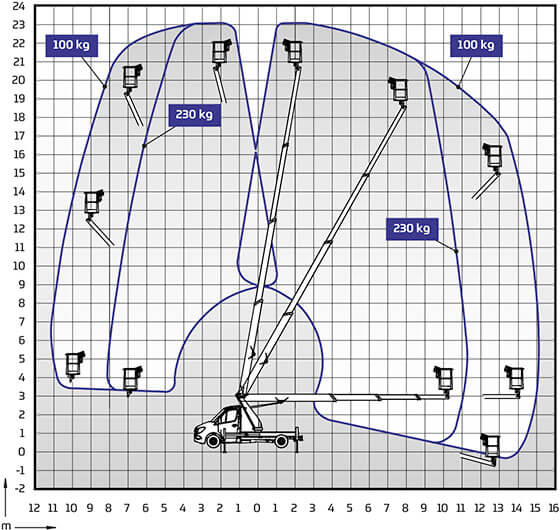

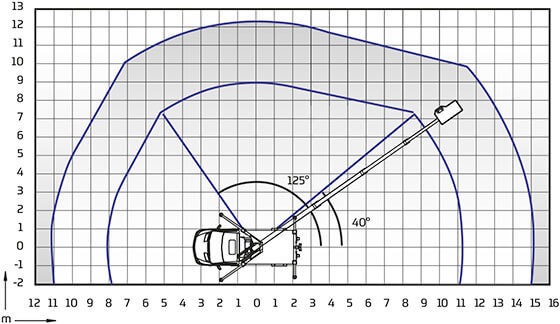

Outreach Diagram

DINO 230VT Outreach Diagram

Warranty

All Dinolift machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Dinolift products, all Dinolift machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Spain. For more details, visit our warranty page.
