• Max working height: 28 m
  • Lifting Capacity: 230 kg
  • Max outreach: 16 m
  • Weight: 4860 kg

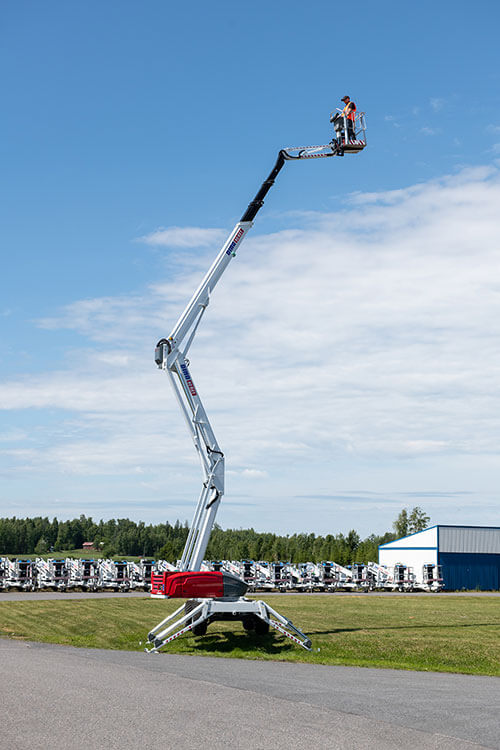

The tallest boom lift in its range, the DINO 280RXT is lightweight with excellent gradeability and superior boom performance. Equipped with four steering modes and oscillating front axle, this rough terrain articulated boom lift can climb gradients up to 40% and operate up to four simultaneous boom movements. For stability, the DINO 280RXT includes automatic leveling capabilities up to 8° to easily handle uneven or rough terrain. It is also fast to setup with an impressive drive speed of 10km/h in transport position.

Standard Features

  • Lightweight boom lift with outriggers
  • Cost-efficient in use and easy to transport
  • Low ground pressure, easy to move on soft surfaces
  • Easy-entry basket, fully operational from the basket
  • Great rough terrain access: oscillating front axle
  • Strong engine, excellent gradeability up to 40%
  • 4WD/ 2WS/ 4WS/ Crab steering
  • Fast to drive and setup: 10 km/h drive speed in transport position
  • Automatic levelling up to 8°
  • Up to 4 simultaneous boom movements
  • Improved user experience, easy to operate, easy to maintain
  • Superior boom performance, 8.2 m up-and-over and up to 16 m outreach
  • Fly-jib 1.6m / 140°

Additional information

Max Working Height

28.00 m

Max Platform Height

26.00 m

Max Working Outreach

16.00 m

Support Width

4.6 / 4.2 m

Lifting Capacity

230 kg

Basket Size

0.7 x 1.3 m

Boom Rotation


Basket Rotation


Boom Control

CAN-BUS, proport.


1.6 m / 140°

Transport Length

5.82 m

Transport Width

2.05 m

Transport Height

2.37 m


4860 kg

Approach / Departure Angles


Ground Clearance

0.33 m

Four Wheel Drive


Steering, 2WS / 4WS / Crab


AC socket in the basket x 2


Diesel engine Kubota 18.5 kW


Electric motor 110/230VAC


Automatic Levelling




Drive Speed

10.0 / 3.0 km/h


  • Electric motor for boom movements
  • Hydraulic generator 3.5 kW
  • Diffenrent tyre configurations
  • Air compressor
  • Extra outrigger pads and brackets, 600 x 600 x 25 mm
  • One person basket 0.70 x 0.80 m
  • DINO SafeGuard secondary guarding
  • LED working lights, 2 x 13 W
  • LED driving lights

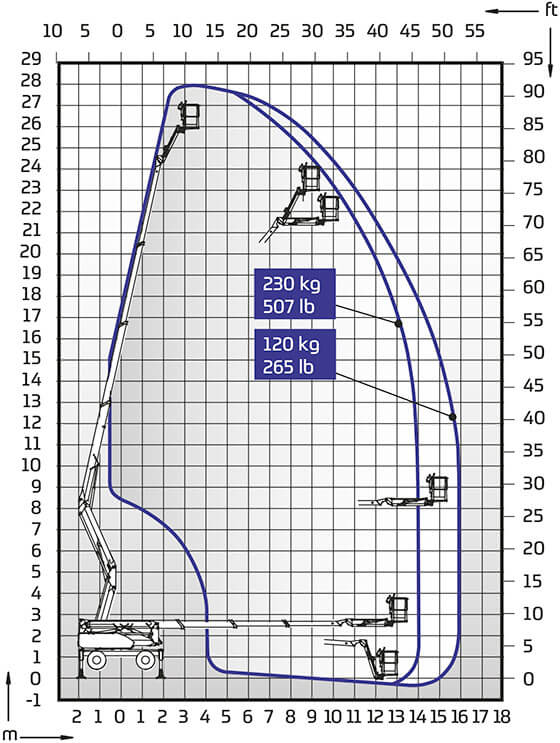

Outreach Diagram

DINO 280RXT Outreach Diagram



All Dinolift machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Dinolift products, all Dinolift machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Spain. For more details, visit our warranty page.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
