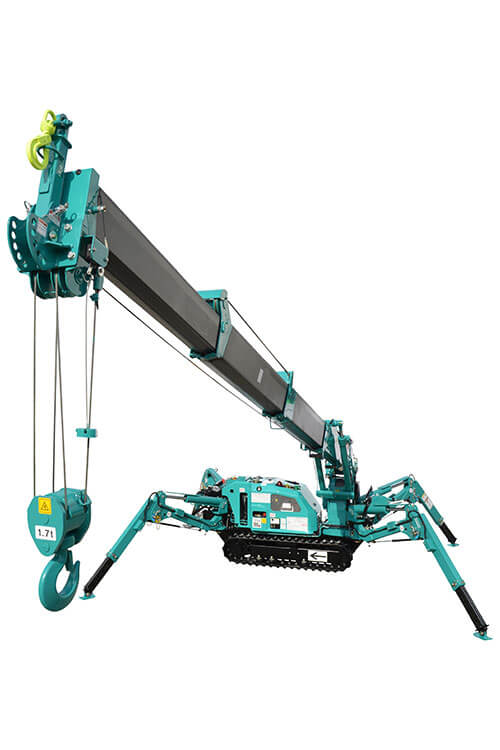

MC174C

  • Capacity: 1.72t x 1.0m
  • Max lifting height: 5.5m
  • Max working radius: 5.17m x 0.22t
  • Machine weight: 1,290kg

Description

The Maeda MC174 sets the standard that other mini cranes try to achieve. Its super slim width of 590mm coupled with its 1.72 ton lifting capacity make it absolutely unparalleled. This fantastic machine also retains all of the other benefits of the machines in the Maeda range including a 2 year warranty, remote control and unrivalled build quality and usability.

  • 1.72 Ton Max capacity
  • 5.5m Max Working Height
  • Super Slim Body Width (590mm)
  • Low Ground Pressure
  • Manoeuvrability & Stability
  • Programmable Moment Limiter
  • Tilt Alarm
  • High Speed Winch
  • 2 Travel Speeds
  • Remote Control
  • Optional 300kg Searcher Hook
  • 2 Year Warranty

Additional information

Crane Capacity

1.72t x 1.0m

Max. Working Radius

5.17m x 0.22t

Max. Lifting Height

5.5m

Max. Reach Below Ground

7.0m (4 falls)

Outrigger Max. Extended Width

(Lat.) 3,335mm x (Fr.) 3,060mm x (R.) 2,885mm

Travel Speed

0-3.3km/h

Travel Ground Pressure

33.7kpa [0.34kgf/cm2]

Engine

MITSUBISHI GB400LE / Petrol

Engine Rated Output

6.6kw /1,800rpm

Dimensions

2,000mm (L) x 590mm (W) x 1,300mm (H)

Machine Weight

1,290kg

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
