S2255RT

Max working height: 8.5m
Platform capacity: 420kg
Stowed height: 2.35m
Weight: 2,410kg

Description

The Snorkel S2255RT narrow diesel rough terrain scissor lift provides excellent off-road performance. With its unique narrow width dimensions and light overall weight, the S2255RT can be easily towed on a trailer by a car or commercial vehicle between jobs, yet delivers the same performance as a standard width rough terrain scissor lift. A roll-out platform extension expands the working area and provides additional reach over low level obstacles.

Standard Features

4-wheel drive
4 hydraulic outriggers with automatic levelling
Roll-out deck extension
Proportional controls
Non-marking tyres
Power line to platform
Drive motion alarm
Descent alarm
Manual lowering valve
Flashing amber light
Dual lanyard attachment points
Oscillating axle
Hour meter
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max Working Height	8.5m
Max Platform Height	6.5m
Platform Size (Stowed)	1.4m x 2.73m
Platform Size (Extended)	1.4m x 3.93m
Deck Extension	1.2m
Overall Width	1.45m
Overall Length	3.3m
Stowed Height	2.35m
Min Height (Guardrails Folded)	2.0m
Ground Clearance	260mm
Platform Capacity (SWL)	420kg
Max Drive Height	6.2m
Max Wind Speed	12.5m/s
Max Drive Speed (Stowed)	5.2km/h
Max Drive Speed (Elevated)	0.66km/h
Raise/Lower Time	26/30 sec
Gradeability	35%
Max Outrigger Leveling (Front to Rear)	6°
Max Outrigger Leveling (Side to Side)	10°
Inside Turning Radius	2.5m
Outside Turning Radius	4.75m
Exit/Entry Angle	20°
Tyres	0.58m x 0.22m – 12 non-marking
Controls	proportional joystick
Drive System	4 wheel drive
Power Source	Kubota diesel engine
Weight	2,410kg

Options

Special paint colours
Nylon spreader pads (set of 4)
Environmental hydraulic oil
Cold weather package
Snorkel OnSite™ telematics

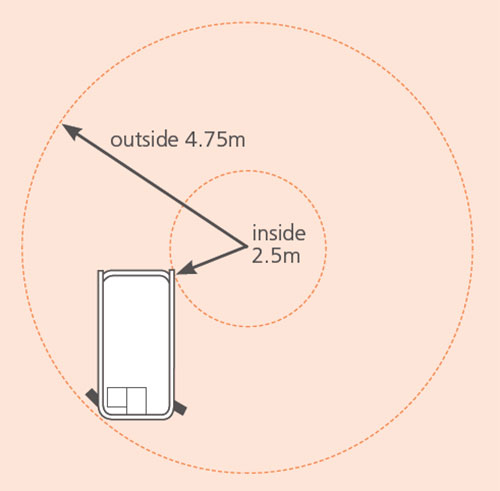

Turning Radius

S2255RT/S2755RT Turning Radius

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Ibérica. For more details, visit our warranty page.
