S3220E

Max working height: 8.1m
Platform capacity: 409kg
Stowed height: 2.17m
Weight: 2,045kg

Description

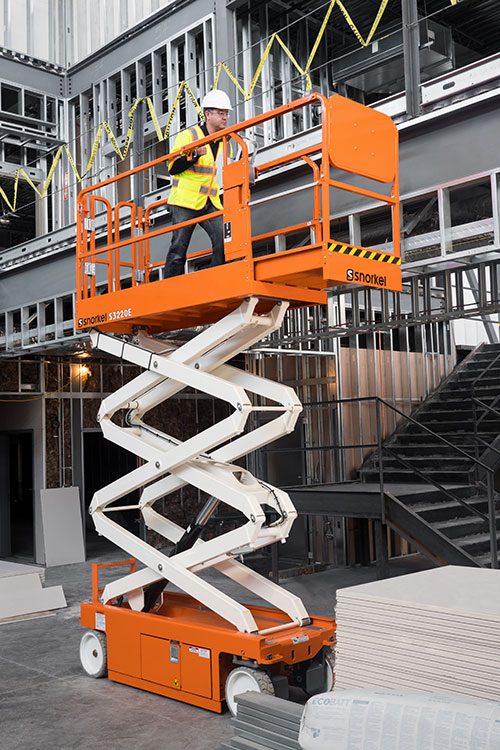

The Snorkel S3220E electric scissor lift features deep cycle batteries and a robust all-steel construction. Designed for a long working life, the S3220E delivers low total ownership costs. Equipped with a telescopic roll-out deck extension and proportional controls, including descent, this lift offers complete on-the-job versatility.

Standard Features

Roll-out deck extension with dual locks
Non-marking tyres
Loading control pendant
Swing-out service trays
Saloon-door style entry gates
Descent alarm
All motion alarm
2 persons indoor
1 person outdoor (S3220E)
Proportional controls, including descent
Power line to platform
Hour meter & on-board diagnostics display
Integrated battery charger
Battery condition indicator
Crane & forklift points
Dual lanyard attachments points
Flashing amber light
Scissor stack roller slide plates (set of 2)
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max Working Height	8.1m
Max Platform Height	6.1m
Platform Size (Stowed)	0.72m x 2.14m
Platform Size (Extended)	0.72m x 2.6m
Extension Deck Length	0.91m
Overall Length (with Step)	2.3m
Overall Length (without Step)	2.26m
Overall Width	0.81m
Stowed Height	2.17m
Min Height (Guardrails Folded)	1.72m
Ground Clearance (Stowed)	66mm
Ground Clearance (Elevated)	19mm
Platform Capacity (SWL)	409kg
Max Drive Height	6.1m
Max Wind Speed	12.5m/s
Max Drive Speed (Stowed)	3.2 km/h
Max Drive Speed (Elevated)	0.6 km/h
Raise/Lower Time	34/43 sec
Gradeability	25%
Inside Turning Radius	0.76m
Outside Turning Radius	2.36m
Tyres	15 x 4 non-marking rubber
Controls	proportional
Drive System	2 wheel drive
Power Source	24V DC battery electric
Charger	90 – 240V, 25amp
Weight	2,045kg

Options

Special paint colours
Snorkel Guard™ secondary guarding system
Snorkel OnSite™ telematics
Environmental hydraulic oil
Airline to platform
Aircraft bumpguard package
Panel carrier (S3220E)
Top rail

Turning Radius

S3220E/S3226E Turning Radius

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Ibérica. For more details, visit our warranty page.
