S9056RT-HC

Max working height: 19.1m
Platform capacity: 1,134kg
Stowed height: 3.09m
Weight: 9,072kg

Description

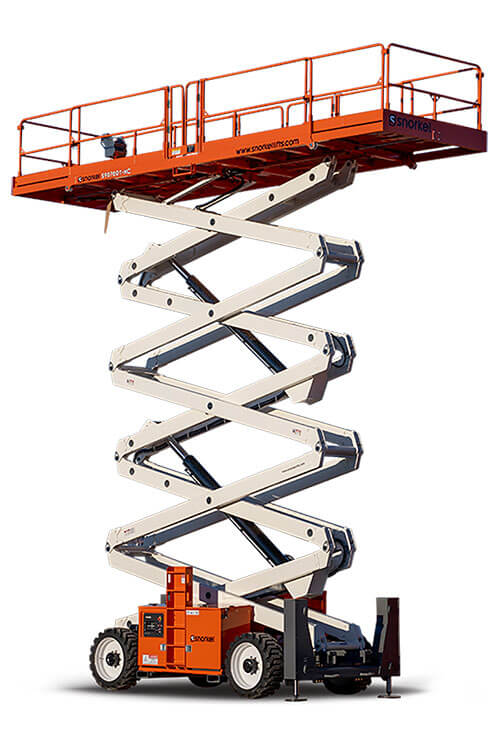

The Snorkel S9056RT-HC ultra-capacity rough terrain scissor lift handles heavy tasks. A high lift capacity and high lift height elevate this scissor lift to new levels. Designed with a twin extension deck and extra-wide pallet gate as standard, it is easy to work at height with tools and materials. Sturdy construction and powerful 4-wheel drive make the S9056RT-HC ideal for rough terrain.

Standard Features

4-wheel drive
4 hydraulic stabilizers with automatic levelling
Dual powered extension decks
Proportional controls
Foam filled tyres
Power line to platform
Drive motion alarm
Descent alarm
Fold-down guardrails
Locking oscillating axle
Manual lowering valve
Flashing amber light (x2)
Dual lanyard attachment points
Hour meter & on-board diagnostics display
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max Working Height	19.1m
Max Platform Height	17.1m
Platform Size (Stowed)	5.49m x 2.28m
Platform Size (Extended)	2.28m x 8.23m
Deck Extension	1.37m
Overall Width	2.28m
Overall Length	4.87m
Stowed Height	3.09m
Min Height (Guardrails Folded)	2.1m
Ground Clearance	356mm
Platform Capacity (SWL)	1,134kg
Max Drive Height	13.1m
Max Wind Speed	12.5m/s
Max Drive Speed (Stowed)	6.7km/h
Max Drive Speed (Elevated)	0.96 km/h
Raise/Lower Time	55/35 seconds
Gradeability	50%
Max Outrigger Leveling (Front to Rear)	6°
Max Outrigger Leveling (Side to Side)	12˚
Inside Turning Radius	2.4m
Outside Turning Radius	5.6m
Tyres	13 x 36 foam filled
Controls	proportional joystick
Drive System	4 wheel drive
Power Source	Kubota diesel
Weight	9,072kg

Options

Special paint colours
Nylon spreader pads (set of 4)
Environmental hydraulic oil
Cold weather package (block heater + battery warm up)
Hydraulic generator 110V/240V
12kW generator package
Snorkel OnSite™ telematics

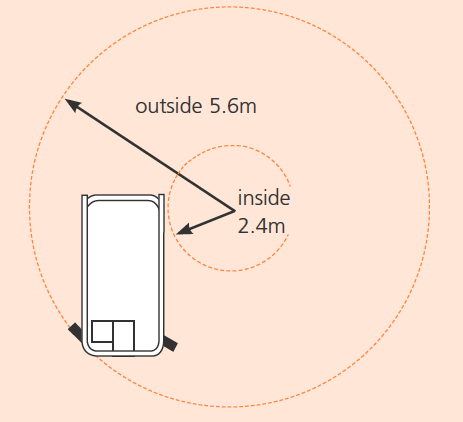

Turning Radius

S9031RT-HC/S9043RT-HC turning radius

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Ibérica. For more details, visit our warranty page.
