SL26RTE

  • Max working height: 10.0m
  • Platform capacity: 680kg
  • Stowed height: 2.6m
  • Weight: 3,500kg

Description

The Snorkel SL26RTE all-electric Speed Level is powered by long-lasting lithium batteries. Its quiet performance is balanced by automatic self-leveling capabilities, without outriggers. Equipped with a 3 ft. (0.91m) roll-out deck extension, the SL26RTE features a 5 ft. 8 in. x 15 ft. (1.72m x 4.6m) platform, when extended, able to lift up to five people with tools.

Standard Features

  • Two lithium-ion battery systems 11.5kWh
  • Automatic powered platform levelling
  • Powerful 4-wheel drive
  • Oscillating front axle
  • High grip, open tread deck (SL30RTE only)
  • Roll-out deck extension (SL26RTE only)
  • Descent alarm
  • High grip non-marking all terrain tyres
  • Digital proportional controls
  • Power line to platform
  • Fold-down guardrails
  • All motion alarm
  • Hour meter & on-board diagnostics display
  • Flashing amber light
  • 2000 charging cycles / 2 year* lithium battery warranty
  • 2 year parts & labour, 5 year structural warranty

*whichever comes first. Refer to Snorkel warranty policy for full details, limitations and restrictions. Batteries at the end of their life to be returned to Snorkel for recycling.

Additional information

Max Working Height

10.0m

Max Platform Height

8.0m

Platform Size (Stowed)

1.72m x 3.66m

Platform Size (Extended)

1.72m x 4.6m

Extension Deck Length

0.91m

Overall Width

2.13m

Overall Length

3.79m

Stowed Height

2.6m

Min Height (Guardrails Folded)

1.7m

Chassis Ground Clearance

305mm

Axle Ground Clearance

195mm

Platform Capacity (SWL)

680kg

Max Wind Speed

12.5m/s

Max Drive Height

8.0m

Max Drive Speed (Stowed)

5.4 km/h

Max Drive Speed (Elevated)

0.8 km/h

Raise/Lower Time

21/32 sec

Gradeability

50%

Max Outrigger Leveling (Front to Rear)

Max Outrigger Leveling (Side to Side)

13°

Inside Turning Radius

3.9m

Outside Turning Radius

5.64m

Tyres

26 x 12.00 – 12 foam filled

Controls

Digital Proportional Joystick

Drive System

4 wheel drive with hydraulic motors and flow dividers

Power Source

11.5kWh Li-ion batteries with integrated BMS

Operational Temperature

(-)25°C to (+)60°C

Motor

AC electric motor

Weight

3,500kg

Options

  • Special paint colours
  • Environmental hydraulic oil
  • Additional 5.75kWh battery system
  • Tunnel package (RTE)
  • Extra range tunnel package (RTE)
  • Work light package
  • Driving light package
  • Extreme environment package
  • Aluminium platform floor (SL26RTE only)
  • Snorkel OnSite™ telematics

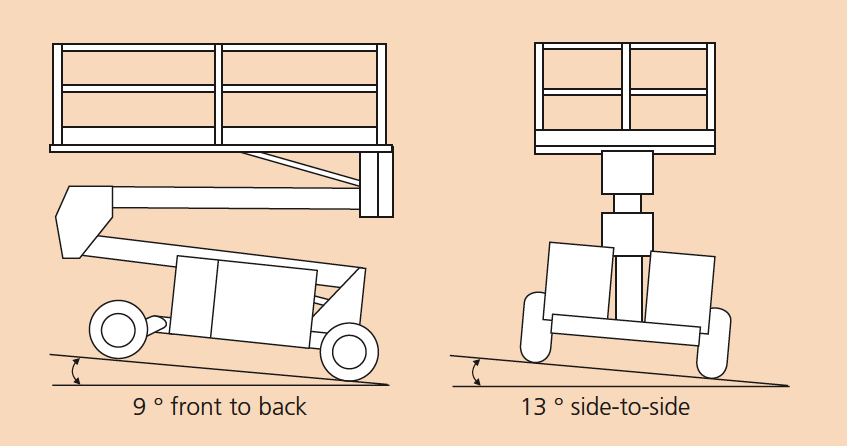

Levelling Capabilities

SL26SL/SL30SL Levelling Capabilities

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Italy. For more details, visit our warranty page.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
