SR1065

  • Max lift height: 9.5m
  • Max lift capacity: 6,500kg
  • Max forward reach: 5.4m
  • Weight: 11,090kg

Description

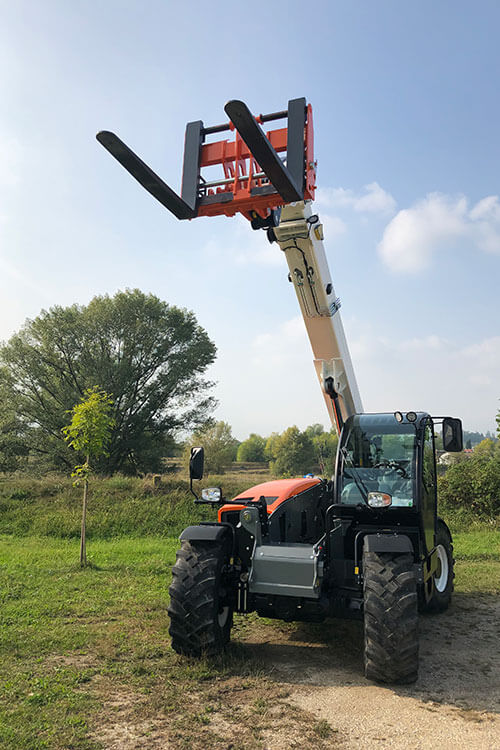

The new Snorkel SR1065 rough terrain telehandler offers robust reliability. A high lift capacity maximizes performance, and a compact design makes it manoeuvrable on the jobsite. Equipped with 4-wheel drive, power assisted steering and a frame leveling system, this telehandler delivers power and precision with great handling capacities.

Standard Features

  • Full-time 4-wheel drive
  • 4-wheel steer – selectable front, crab & coordinated steering modes
  • Auxiliary hydraulic circuit on the boom
  • Variable speed hydrostatic drive
  • Fender (4)
  • Fully enclosed cab with heat
  • Proportional joystick controls
  • Adjustable steering column
  • Illuminated gauge and switch panels
  • Colour LCD display with machine & engine diagnostics
  • Adjustable suspension seat
  • Flashing beacon
  • Fixed 1500mm carriage & 1500mm floating forks
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Lift Capacity

6,500kg

Max Lift Height

9.5m

Max Forward Reach

5.4m

Overall Width

2.3m

Stowed Height

2.5m

Length to Fork Face

6.45m

Wheelbase

2.9m

Ground Clearance

410mm

Max Drive Speed

40km/h

Raise/Lower Time

20 / 14 seconds

Frame Levelling

10°

Hydraulic Flow (Per Minute)

100L

Hydraulic Pressure

230bar

Hydraulic Oil Capacity

150L

Fuel Capacity

120L

Outside Turning Radius

4.5m

Tyres

445/65 R22.5˝

Power Source

Deutz TCD 74.5kW Stage V / Tier 4 Final diesel

Weight

11,090kg

Options

  • Special paint colours
  • Air conditioning
  • Grammer air suspension seat
  • Front & rear LED work lights (4)
  • Work lights on boom (2)
  • Heated right external mirror
  • Additional rear mirror
  • Cab front glass protection grille
  • Engine preheater 220V
  • Boom suspension & floating boom
  • Bluetooth radio, handsfree & USB socket
  • Sun curtain
  • Fixed tow hook 6 ton
  • Snorkel OnSite™ telematics

Load Chart

Snorkel SR1065 Load Chart

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Ibérica. For more details, visit our warranty page.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
