SR1442

  • Max lift height: 13.5m
  • Max lift capacity: 4,200kg
  • Max forward reach: 9.5m
  • Weight: 11,150kg

Description

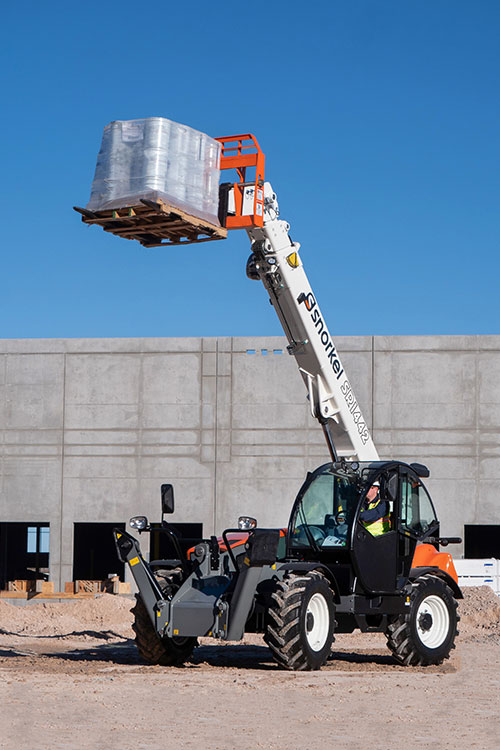

The Snorkel SR1442 rough terrain telehandler is reliably rugged. Equipped with a powerful Deutz Tier 4 Final diesel engine, this telehandler is designed to deliver sturdy performance on all terrain. It also features outriggers and frame sway as standard for maximum control.

Standard Features

  • Full-time 4-wheel drive
  • 4-wheel steer – selectable front, crab & coordinated steering modes
  • Auxiliary hydraulic circuit on the boom
  • Variable speed hydrostatic drive
  • Fender (4)
  • Fully enclosed cab with heat
  • Proportional joystick controls
  • Adjustable suspension seat
  • Illuminated gauge & switch panels
  • Colour LCD display with machine & engine diagnostics
  • Flashing beacon
  • Fixed 1500mm carriage & 1500mm floating forks
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Additional information

Max Lift Capacity

4,200kg

Max Lift Height

13.5m

Max Forward Reach

9.5m

Overall Width

2.3m

Stowed Height

2.56m

Length to Fork Face

6.45m

Wheelbase

2.95m

Ground Clearance

350mm

Max Drive Speed

30km/h

Raise/Lower Time

13 / 9.5 sec

Frame Levelling

11°

Hydraulic Flow (Per Minute)

120L

Hydraulic Pressure

230bar

Hydraulic Oil Capacity

150L

Fuel Capacity

120L

Outside Turning Radius

4.2m

Tyres

405/70 – 24

Power Source

Deutz 55.4kW Stage V/Tier 4 Final diesel

Weight

11,150kg

Options

  • Special paint colours
  • Air conditioning
  • Grammer air suspension seat
  • Front & rear LED work lights (4)
  • Work lights on boom (2)
  • Heated right external mirror
  • Additional rear mirror
  • Cab front glass protection grille
  • Engine preheater 220V
  • Boom suspension & floating boom
  • Bluetooth radio, handsfree & USB socket
  • Sun curtain
  • Fixed tow hook 6 ton
  • Snorkel OnSite™ telematics

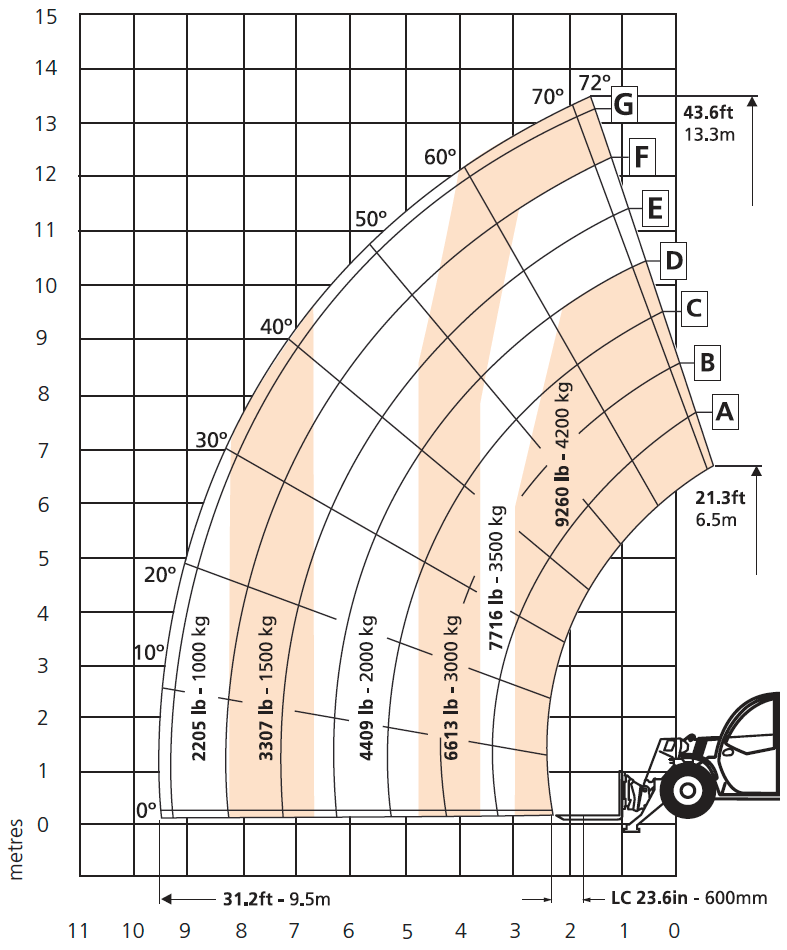

Load Chart

Snorkel SR1442 Load Chart

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Ibérica provides nationwide coverage for any warranty or technical support required in Ibérica. For more details, visit our warranty page.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and Dinolift operators manual for detailed instructions on the proper use and maintenance.
